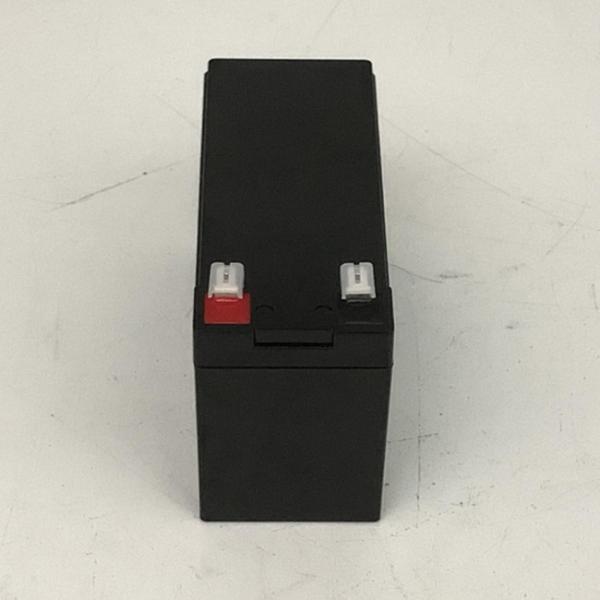

Doorbell System 12.8V 7.2Ah Lithium Battery Packs For Lead Acid Replacement

Shenzhen Jinghongtai Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Doorbell System 12.8V 7.2Ah Lithium Battery Packs For Lead Acid Replacement

  • 1
  • 2

Brand Name : JHOTA

Place of Origin : China

MOQ : 200

Price : Negotiable

Payment Terms : T/T

Supply Ability : 3000pcs

Delivery Time : 30-40 days

Packaging Details : Carton

Product name : Lithium Battery Lead Acid Replacement

Nominal Voltage : 12.8V

Norminal Capacity : 7.2Ah support customized

Application : Doorbell system

Battery Type : 26650 3.6Ah

Cycle Life : 3000 cycles

Contact Now

Specification
Model
12.8V 7.2Ah Lithium Battery Lead Acid Replacement
Nominal Voltage
12.8V
Nominal Capacity
7.2Ah @0.2C
Energy
92.16Wh
Internal Resistance
≤ 80mΩ
Cycle Life
3000 cycles @0.2C Charging / Discharging, until 70% Capacity
Self Discharge
≤ 3.5% per month at 25℃
Max.Charging Voltage
14.0-14.6V
Charging Mode
At 0℃ - 45℃ temperature, charged to 14.6V at a constant current of 0.2C 5A, and then, changed continuously with constant voltage
of 14.6V until the current was not more than 0.02C 5A
Charging Current
1.8A
Max.Charging Current
4.5A
Discharging Current
1.8A
Max.Continuous Current
9A
Max.Pulse Current
20A(<3S)
Discharging Cut-Off Voltage
10V
Charge Temperature
0℃ - 45℃ @60 ± 25% Relative Humidity
Discharge Temperature
-20℃ - 60℃ @60 ± 25% Relative Humidity
Storge Temperature
0℃ - 45℃ @60 ± 25% Relative Humidity
Water Dust Resistance
IP55
Cell & Plan
Cylindrical 26650 LFP 3600mAh, 4S 2P
Casing
Plastic
Product Size (L*W*H*)
151*65*94 mm
Single carton quantity
12 PCS / Carton
Packing Size
44*25*18 cm
Product Weight
Approx. 1 KG
Packing Weight
11.5 KG
Terminal
F2

Product Description

High-quality 12.8V 7.2Ah Battery Packs for Lead-Acid Battery Replacement - Order Now!

Doorbell System 12.8V 7.2Ah Lithium Battery Packs For Lead Acid Replacement

Quick details:

1. Lithium battery packs are a modern, high-tech replacement for lead-acid batteries.

2. They offer longer life cycles and higher energy densities than lead-acid batteries.

3. Lithium battery packs are lightweight and have a high power-to-weight ratio.

4. They can hold their charge for longer periods compared to lead-acid batteries.

5. Lithium battery packs require minimal maintenance, unlike lead-acid batteries which need regular checks and top-ups.

Doorbell System 12.8V 7.2Ah Lithium Battery Packs For Lead Acid Replacement

Function:

1. Backup power source

2. Renewable energy storage

3. Emergency power supply

4. Electric mobility power

5. High-capacity energy storage

6. Energy security solution

Appliciation

- Solar power storage systems

- Electric vehicles

- Backup power for residential homes

- Standby power for military bases and government facilities

- Emergency power for airports and air traffic control systems

- Hybrid power systems for RVs and motorhomes

Why choose us?

1. Extremely Long cycle Life
The battery capacity is over 80% after 1C charge and discharge under 100% DOD condition 100%.

2. In parallel or in series

Easy to extended in parallel or in series to get more capacity or higher voltage.

3. Mobile Phone APP monitoring

The battery status, cycle life, Temp. Voltage, current, etc, can be checked by phone bluetooth APP(can custom your own brand APP).

4. Ultra Safe

Adopt intelligent BMS, could pass high current, Multiple built in protection functions, protect battery from over charge, overdischarge, over current, over temperature, short circuit.
